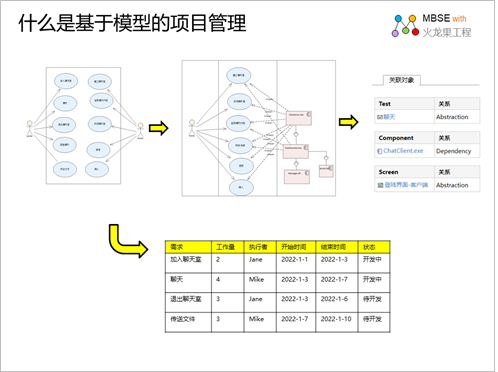

What
is model-based project management
For the analysis and design of
complex systems, MBSE engineering methods are generally
used to establish corresponding models: business model,
system model, data model, software model, deployment
model, etc. These models greatly improve the clarity
and completeness of descriptions compared to documentation.
Model-based project management is all about project
planning, progress tracking, quality control, and
change management based on these engineering models.
Why Model-Based
Project Management
There are many aspects involved
in project management, and the common elements are:
• Requirements: user
requirements, system requirements, software requirements
• Requirements tracking: requirements-design-implementation-testing
• People: roles, job responsibilities
• Work Tasks: Task
assignments
• Quality of work:
quality standards, quality review
• Work Progress: Make
a plan and track progress
It is necessary to sort out the
various management elements of the project based on
the model and clarify the relationship between them,
so as to lay a good foundation for project management.

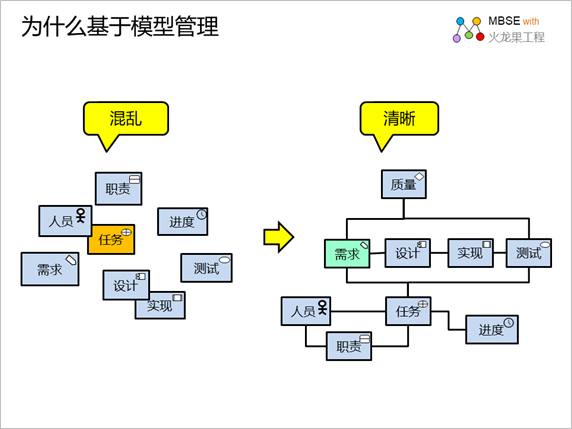

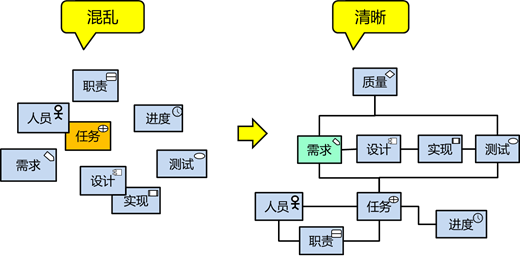

The following diagram illustrates the relationship
between the various elements in project management:
This requires 2 types of models:
1. Engineering model, including:
1）Requirements
model: Describe what functional and non-functional
requirements there are
2）Design
model: describe which logical modules or subsystems
implement the requirements.
3）Implementation
model: Describe what components need to be developed
and how these components are assembled as subsystems.
4）Test
model: describes the test scenarios corresponding
to the verification requirements and the bugs found.
2. Project model, including:
1）Personnel
model: describe who they are, what roles they assume,
and what responsibilities they have.
2）Process
model: describe the division of roles and workflow
sequence throughout the development process.
3）Task
model: describes which people the requirements are
assigned to and what work tasks they become.

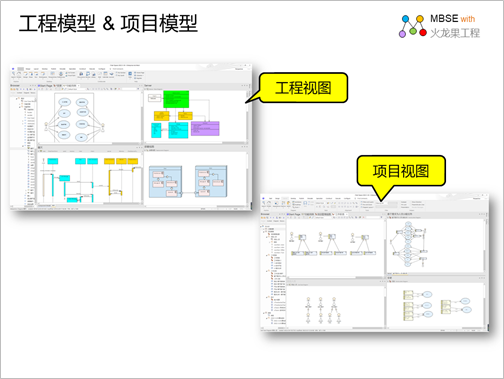

These 2 models should be able
to relate to each other, as shown below in the 2 working
models based on the modeling tool EA and the correlation
between the two.
How model-based
project management differs from traditional project
management
From a management perspective,
project management can be done in two ways:
• Requirements-based
project management: Plans and progress are made based
on requirements.
• Task-based project
management: Make plans and track progress based on
tasks.

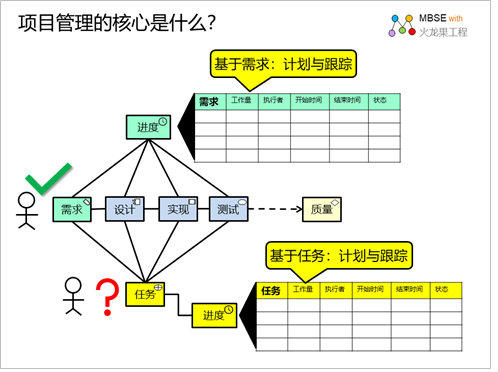

The differences between the two
are as follows:
These two management models look
similar, but in fact, the core of management is fundamentally
different:
• Requirements-based
project management: The core of management is the
goal of the project – requirements.
• Task-based project
management: At the heart of management is the worker's
behavior—the task.
Which of these two management
models is better?
• Requirements are
the goal of the job itself, so it is simple and straightforward
to keep the worker in mind what they are doing.
• The task is based
on the worker's decomposition of the goal, not the
goal itself, so it is easy to work for the task and
lose the goal itself.
Some people may say that even
if management is based on requirements, it is not
necessary to form tasks when working, so that you
can know how to do it. Yes, the task can tell the
worker how to work, but this is actually the first
thing that people want to advertise when they first
start working, the real engineer is to receive the
requirements, analyze the requirements clearly, and
then take the requirements as the focus of tracking
management, and the further work decomposed in order
to achieve the requirements belongs to the next level
of things. Even for major projects, where some tasks
are very important, it cannot be more important than
the needs of its source.
Thus:
At
its core, project management is about requirements,
not tasks. |
Naturally needs-based project
management is better project management.
Model-based project management
supports both project management models, but is better
at requirements-based project management because the
complete requirements and the requirements-design-implementation-test
tracking relationships are documented in the model.
Here's how we approach 2 project
management modes based on the modeling tools EA and
WebEA:

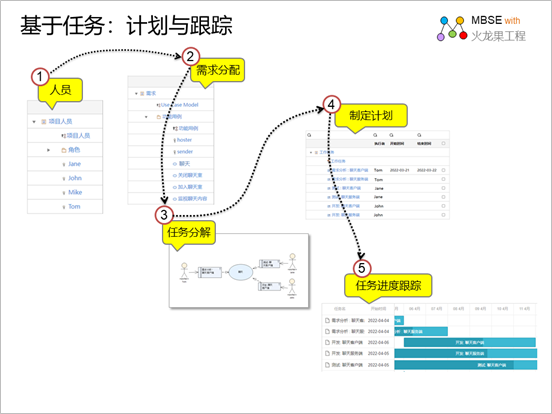

1. The task-based approach to
project management is as follows:
| 1）First,
identify the project personnel, their roles
and responsibilities.
2）The personnel are
then assigned the requirements to undertake
based on the list of requirements in the requirements
model.
3）Then create corresponding
work tasks for people based on their needs.
4）Make a time plan
based on work tasks.
5）Progress tracking
based on work tasks. |

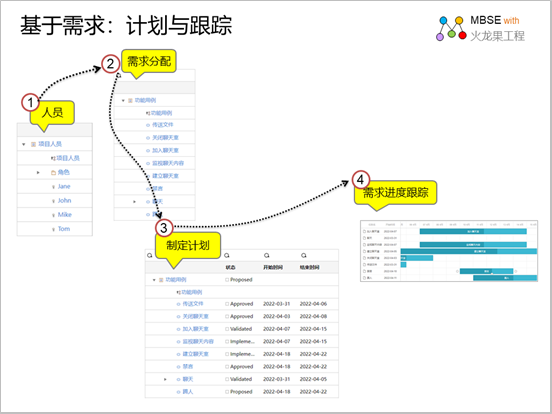

The requirements-based approach
to project management is as follows:
1）First,
identify the project personnel, their roles
and responsibilities.
2）The personnel are
then assigned the requirements to undertake
based on the list of requirements in the requirements
model.
3）These people automatically
correspond to the design, implementation, and
testing of requirements according to their responsibilities,
but do not explicitly create tasks, but use
them as an internal mechanism for their own
implementation.
4）Make a time plan
based on demand, and then track progress based
on demand.
Tip: One step less than task-based project management! |

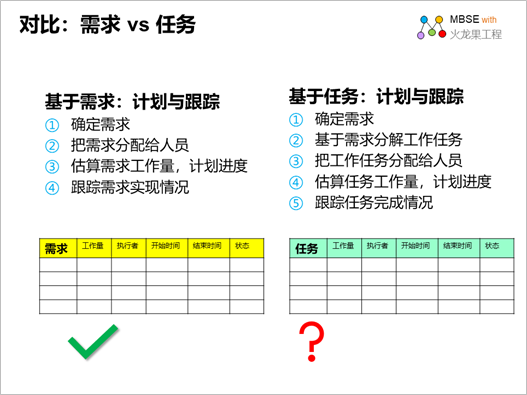

You can compare 2 project management
models side by side:
It's clear: requirements-based based based tracking is much more concise and to the point.
What tools
are needed for model-based project management

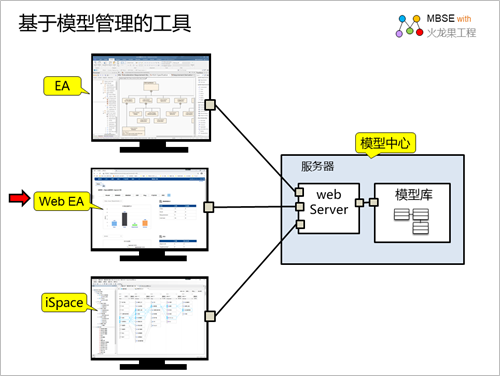

As a more advanced project management
model, model-based project management requires powerful
tools to support:
• Model Library: You
should establish a team-shared model library that
houses engineering and project models.
• Modeling tools: There
should be tools that support both engineering modeling
(requirements, design, implementation, testing) and
project modeling (people, processes, tasks). At the
moment we use the modeling tool EA.
• Management tools:
Should be able to support web-based management, which
is easy to access and easy to deploy at scale, and
we currently use WebEA.
• Supporting tools:
Should be able to establish process guidelines, establish
tracking relationships for models at each stage, and
we are currently using iSpace.

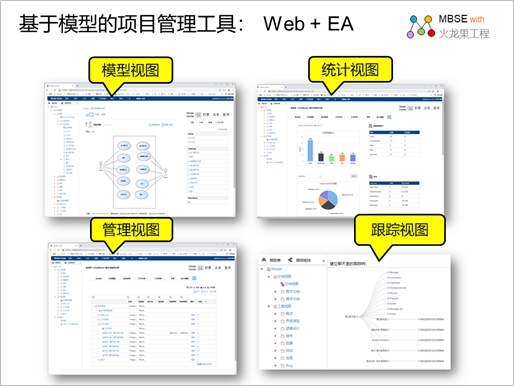

The following is a brief introduction
to WebEA's project management features.
Web EA allows you to browse, manage,
and analyze models in a web browser. Models can be
converted into an easy-to-manage form - a list view
of requirements that can be sequenced, grouped, assigned,
changed management, and quality reviewed. It also
supports the tracking of multiple forms of requirements-design-implementation-testing,
and statistical analysis of requirements.
How to manage
projects based on a model
Here's a look at the project management
capabilities of EA and WebEA:
1. Requirements tracking
2. Assignment of work tasks
3. Progress tracking
4. Change management
5. Quality management
6. Problem Management
7. Cross-project workbenches

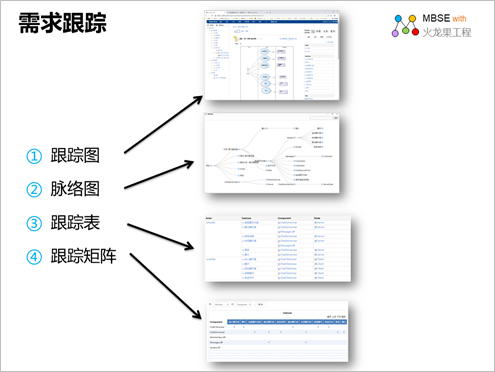

1. Requirements Tracking:
There are 4 types of requirements
tracking views that can be supported in WebEA:
1) Trace Diagram: You can browse
the trace diagram between requirements, design, implementation,
and testing.
2) Context diagram: It can generate
a tree-shaped context diagram based on the tracking
diagram, which has better accommodating capacity and
expansion ability.
3) Tracking table: It can describe
the multi-level tracking relationship in the form
of a list, which has a more rigorous management form.
4) Trace Matrix: Describe the
tracking relationship between 2 types of requirements-design-implementation-testing
in a row-and-column manner.

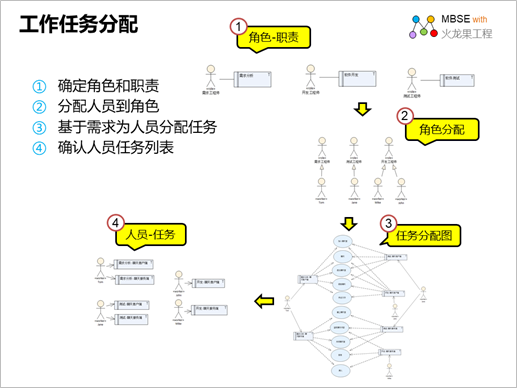

2. Assignment of work tasks
Work assignments can be modeled
in a way that is:
• Start by modeling
a model of the responsibilities assumed by the role
• Then build a mapping
model of people and roles
• People are then assigned
work tasks based on the requirements model
• Finalize the work
task model of the personnel

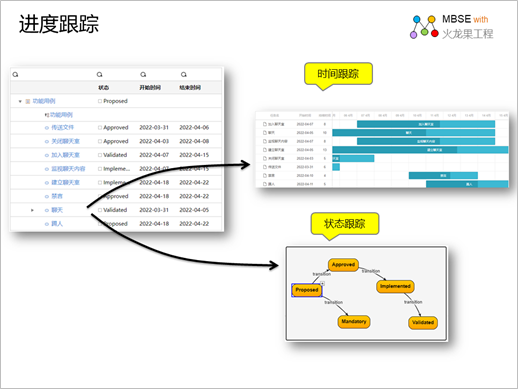

3. Progress tracking
There are 2 simultaneous requirements
management modes supported in WebEA:
1）Demand-based project management:
Make plans and track progress based on requirements.
2）Task-based project management:
Make plans and track progress based on tasks.
For demand-based progress tracking,
there are 2 tracking modes:
• Time Schedule Tracking:
Each work object (requirements, design, implementation,
testing) can make a time plan and provide a Gantt
chart to track progress.
• Status tracking:
Each work object (requirements, design, implementation,
testing) provides a status configuration, you can
customize different status paths, and then set the
status for each work object to track progress.

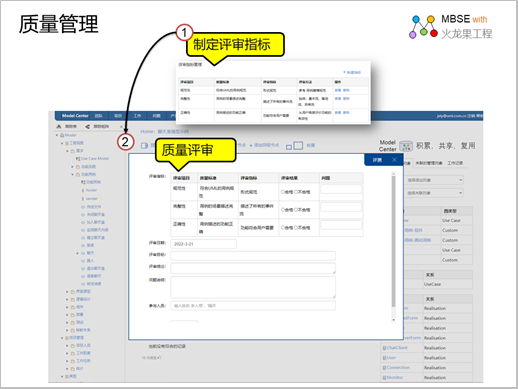

4. Quality management
Provide quality management functions
for work objects (requirements, design, implementation,
testing):
• Set different evaluation
indicators for different work objects.
• The quality review
is then carried out, and the relevant questions and
conclusions are recorded.

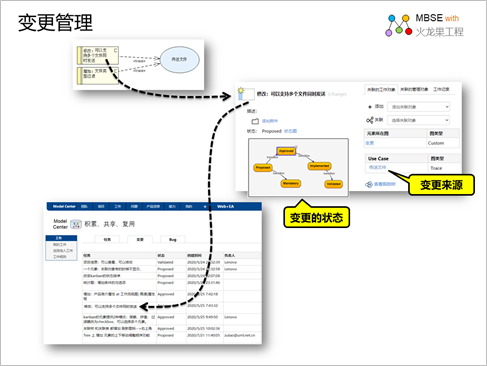

5. Change Management
Model-based change management
is supported, and related change objects can be associated
with requirement objects, and then multiple change
browsing views are provided:
• Relevant changes
from the perspective of requirements: easy to track
requirements.
• Look at the relevant
sources of the change: facilitate the analysis of
the impact of the change.
• Integrated list of
all changes: easy to process and track changes.

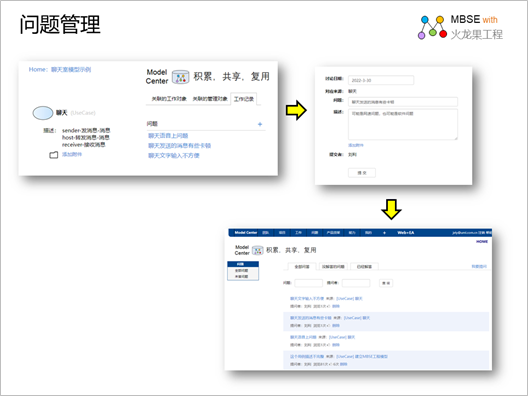

6. Problem Management
Model-based issue management,
which allows you to submit an issue on a model element
and then provide a variety of browsing views:
• Look at the relevant
problems from the perspective of requirements: facilitate
the tracking of requirements.
• Look at the relevant
source from the problem: facilitate the analysis of
the impact of the problem.
• Integrated list of
all issues: easy to handle and track issues.

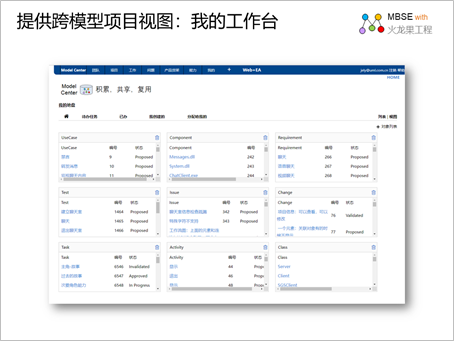

7. Cross-project workbenches
One person is often involved in
different projects, so a one-person workbench is also
provided to view the requirements, design, implementation,
testing, changes, bugs, problems, and tasks related
to all the projects that this person is responsible
for.
How-to
demo
Model-Based Project Management - Principles Section
Model-Based
Project Management-Operations Part
Postscript
I hope you have benefited from
reading this article.
If you are interested in sharing
your experience, please feel free to contribute to
us, and if you are interested in our training, consulting
and tools, please learn about:
• Modeling Tools: EA
• MBSE platform:iSpace
• Model web browsing
tool: WebEA
• Course: System
Design and Modeling Based on SysML and EA
• Course: System
analysis and design based on UML and EA
• Consulting Solution:
MBSE (Model-Based Systems Engineering).
• Consulting Solution：
Model-driven
development based on UML
• All modeling-related
courses: http://www.modeler.org.cn/course/index.asp
• Consulting Solution：
Model-Based
Project Management
If you
would like to learn more:
Welcome to the Modelers Channel
http://modeler.org.cn/
Also welcome to contact us
directly at zhgx@uml.net.cn ，010-62670969
About the Author:
| Zu
Tao , the founder of Pitaya Software Engineering,
founded Pitaya Software Engineering in 2001 and
IBM Rational User Group in 2004. In 1998, he participated
in the national key research project "Component-based
Software Reuse for Specific Domains" as a
backbone, and was fortunate to learn and use UML
for domain modeling and refine reusable components
and architectures. In the subsequent R&D projects,
the model has been used for analysis and design,
and has accumulated some experience and experience.
In the past experience, the biggest impression
is that the field of software engineering and
systems engineering, which has brought together
many elite talents, has been a messy and confused
state for decades, and from my own experience,
I feel that a clear model is the key to clearing
the fog of engineering, so I continue to study
and apply various modeling techniques, and extract
experience from my own engineering practice, and
form a sustainable methodology for myself, such
as "Nature Model Language- Nature Model Language"
Model-based 3D R&D Management", "iProcess
Process Improvement Method", "Model-based
Requirements Management", "Model-Driven
Architecture Design", "Model-Based Quality
Management", "Model-based Personnel
Capability Management", is currently working
as a product manager and architect, conducting
the research and development of MBSE (Model-Based
Systems Engineering) platform, hoping to establish
model-based engineering solutions, and will continue
to write some articles in the future, hoping to
give some reference to peers.
|
|
 |
|
|
