DoDAF Modeling Wizard |
| To help users quickly build DODAF Modeling capabilities, the DODAF Modeling Wizard provides the following:
• DODAF process Guide
• DODAF model template
• DODAF Modeling Wizard (Software) |
|

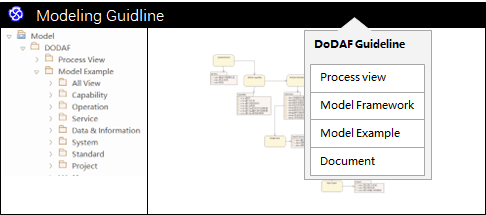

DODAF Modeling Wizard plug-in
DODAF Modeling Wizard Plug-ins allow users to quickly create DODAF modeling guides, model templates, and model samples.
process Guide

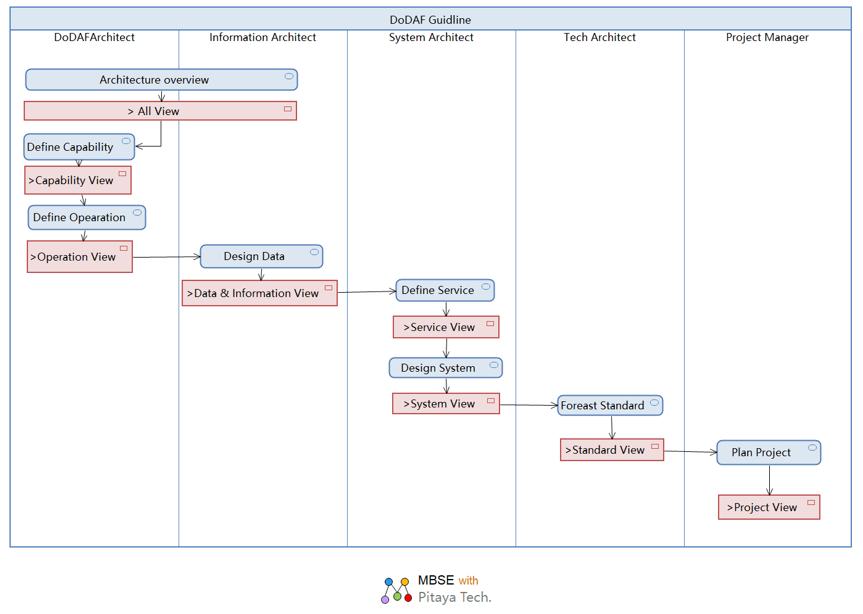

Provides the process Guide for DODAF full cycle architecture design. The following is the first-level view:

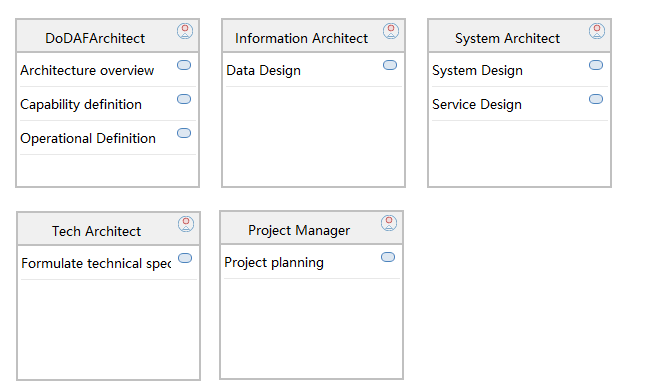

Provide descriptions of various engineering roles, responsibilities, and skill requirements, as shown in the following role models.
model template

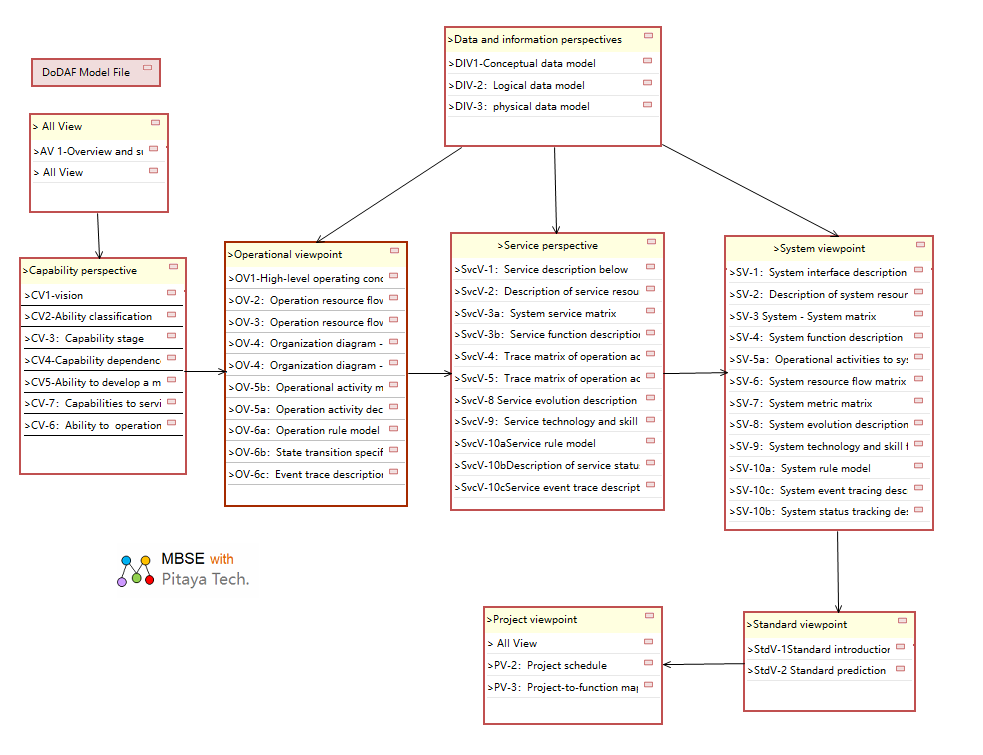

Provides a modeling reference template for each of the eight viewpoints of the DODAF, as shown in the model template directory:
Model example
Provides sample models for each of the eight viewpoints of DODAF. Below is a screenshot of the model sample:
|
|
DODAF Model framework, including the following:
DODAF process Guide
DODAF model template
DODAF Modeling Wizard (software) |
|
|
| If you need to purchase DODAF model framework, please contact us: |
| umlooo@hotmail.com |
|
