Product Introduction

Views

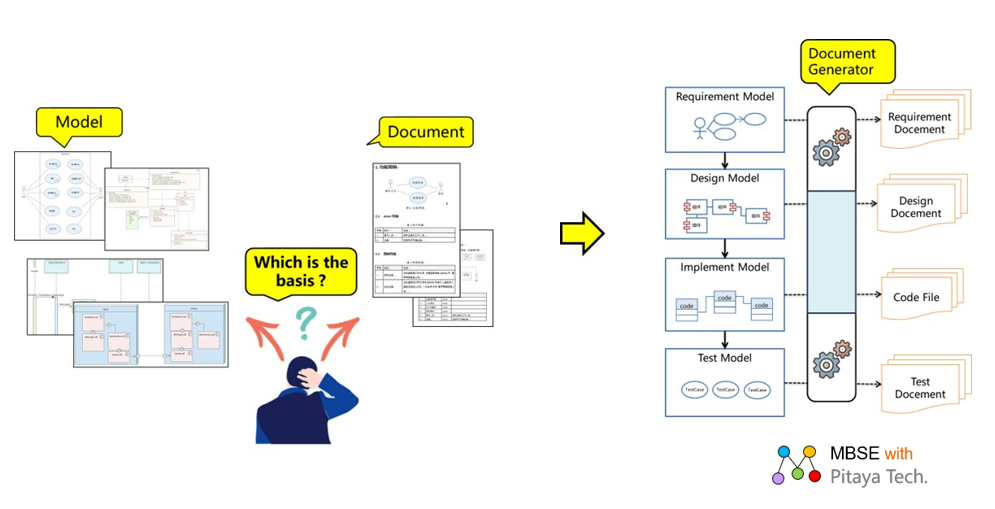

Which is the center of the Document or the Model?
Help users using EA Modeling, one click to generate 100% of the documentation, no manual adjustment, fully comply with engineering specifications. Supported document template specifications:
  • National military standard 5000-438B
  • CMMI Level 3-5
  • ASPICE Level 3-5
  • Help users using EA Modeling, one click to generate 100% of the documentation, no manual adjustment, fully comply with engineering specifications. Supported document template specifications:
  • National military standard 5000-438B
  • CMMI Level 3-5
  • ASPICE Level 3-5
  • Why Generate a Document Generator
           Models are the main working carrier of Requirements analysis and Design, and Modeling using Modeling specifications helps to analyze Design quality professionally. At the same time, the document is mainly published, which is easy for most readers to read. The transformation from the Model to the document is time-consuming and laborious if manual, and it is easy to miss the content. Document Based Generator can generate the required documents based on the Model with one click.
    What does Document Generate do

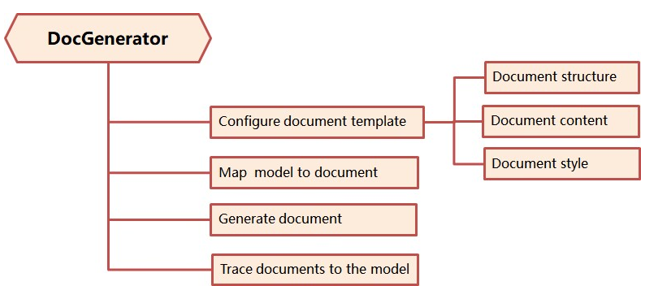

           Document generator can help users to automatically generate documents for existing Models through simple configuration. Functions are as follows:
    How to Use
    • The user first establishes the document structure
    • Then configure the correspondence between the document structure and the Model in EA.
    • Finally, you can generate the required document with one click. Document generation efficiency is high, 100 page Model documents can be generated in 1 minute.

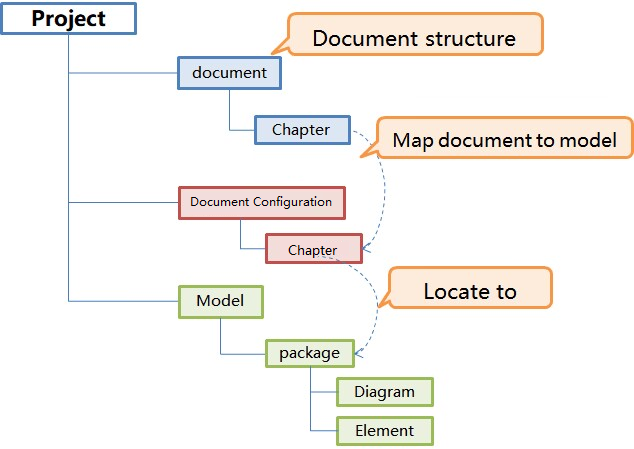

    The operation mode is as shown in the figure below:
    10/5000 Screenshot of the operation interface as follows:
    • Document view
    • Documentation - Model configuration
    • Model view
    Supported Document Templates

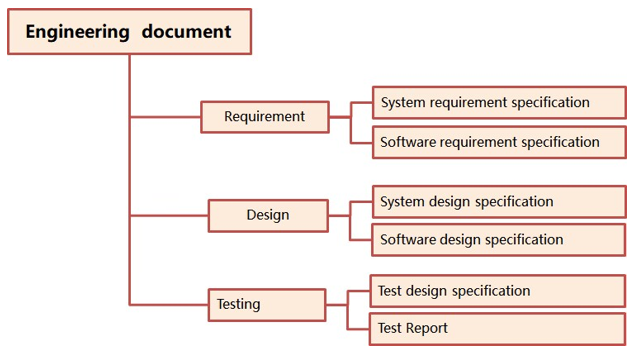

           Currently, the following document templates are supported by default. Users can configure more Model document templates according to their own needs. Dragon Dragon also provides consultation services for Model Framework customization and document template customization.
    Document Generator:

  • Model Framework: Requirements Model Framework, architecture Model Framework, detailed Design Model Framework (customization fee is subject to specific circumstances)

  • Document template: Requirements document template, architecture document template, detailed Design document template (customization fee depends on the specific situation)


  • Email: umlooo@hotmail.com
